HYDRAULIC BALE PRESS FOR SMALL BAGS
These presses are most suitable for very compact baling of HDPE PP-Woven Sack bags. Compact bales of bags made of facilitable save transportation cost, time & Storage-space.
- Four open guide piller + guid rod for support of moving platen resulting in perfect alignment and safety of the hydraulic seals.
- The moving platens can be stopped by the means of height adjustable limit switches on both sides. i.e upwards & downwards
- Pressure relief valve is provided for over pressure safety.
- Available in a wide range of platform sizes, height & tonnags.
- Warranty against proper usage on all machine parts for 1 year from the date of delivery.
Technical Specification Of Hydraulic Bale Press in Ahmedabad, Gujarat
- Main moters of ISI Make- CROMPTON GREAVES MAKE/ABB”
- Pressure relief valve “POLYHYDRON” make
- Pressure gauge 0-250 bar / 0-400 bar “MICRO” make
- Solenoid operated direction control valve “UKEN”/Rexroth” make
- Hydraulic seals are made of Technolan (tialy)/ Merkel (Germany).
- Pressure gauge 0-250 bar / 0-400 bar “MICRO” make
TECHNICAL SPECIFICATION OF HYDRULIC SMALL BAG BALE PRESS IN AHMEDABAD, GUJARAT
| CAPACITY | 10 TON | 20 TON | 40 TON | 50 TON | 60 TON | 80 TON |
|---|---|---|---|---|---|---|
| Platform Size (mm) | 1000x800 | 1200x800 | 1500x1000 | 1500x1000 | 1500x1000 | 1500x1000 |
| Pressure (KgCm”Cm) | 120 | 140 | 160 | 180 | 190 | 210 |
| Electric Motor (HP) | 3 | 5 | 10 | 12.5 | 12.5 | 15 |
| Stroke (mm) | 900 | 1000 | 1200 | 1200 | 1200 | 1200 |
| Oil Required (Litres) | 170 | 170 | 210 | 210 | 210 | 270 |
| No. Of Guide Rods | 2 | 2 | 4 | 4 | 4 | 4 |
| Hyd. Pump | Gear | Gear | Vane | Vane | Vane | Vane |
| Pump Capacity | 27 | 40 | 27+40 | 30+50 | 30+50 | 50+100 |
| L x B x H Dimensions | 1300x900x3200 | 1300x900x3200 | 1700x1100x3700 | 1700x1100x3700 | 1700x1100x3700 | 1700x1100x3700 |

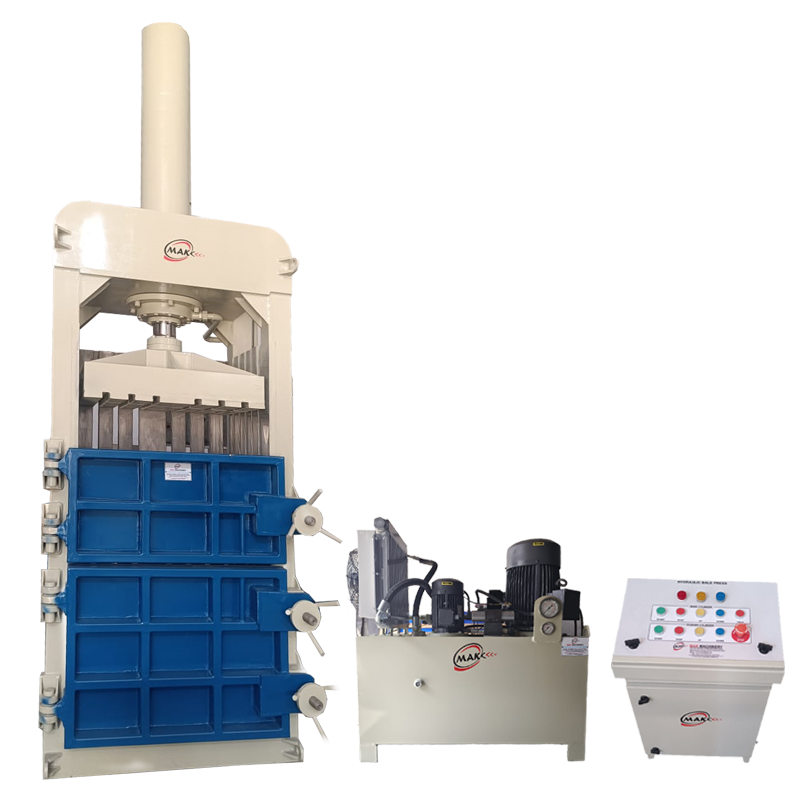

HYDRAULIC BALE PRESS FIBC JUMBO BAG BALE PRESS
TECHNICAL SPECIFICATION OF HYDRULIC FIBC JUMBO BAG BALE PRES
| CAPACITY | 120 TON MAK/JBP/120 AP | 150 TON MAK/JBP/150AP |
|---|---|---|
| Platen Size (MM) | 1100X950 | 1100X950 |
| Max. Pressure (Kg/Cm2 ) | 200-210 | 220-230 |
| Mini. Bale Height (MM) | 200 | 200 |
| Electric Motor (HP) | 20 HP | 25 HP |
| Stroke (MM) | 1600 | 1600 |
| Oil Required - Min. (liter) | 350 | 400 |
| No. Of Guide | 4 | 4 |
| Pusher Motor (HP) | 3 | 5 |
| Operation | Push Button | Push Button |
| Hydraulic Pump | Vane | Vane |
| Oil Cooling System | Optional | Optional |
| Pump Capacity | LPM (200 + 50) & Pusher 27 LPM | LPM (250 + 60) & Pusher 27 LPM |
| All Dimension (L x W x H) MM | 1400 X 1000 X 4800 | 1400 X 1000 X 4800 |
