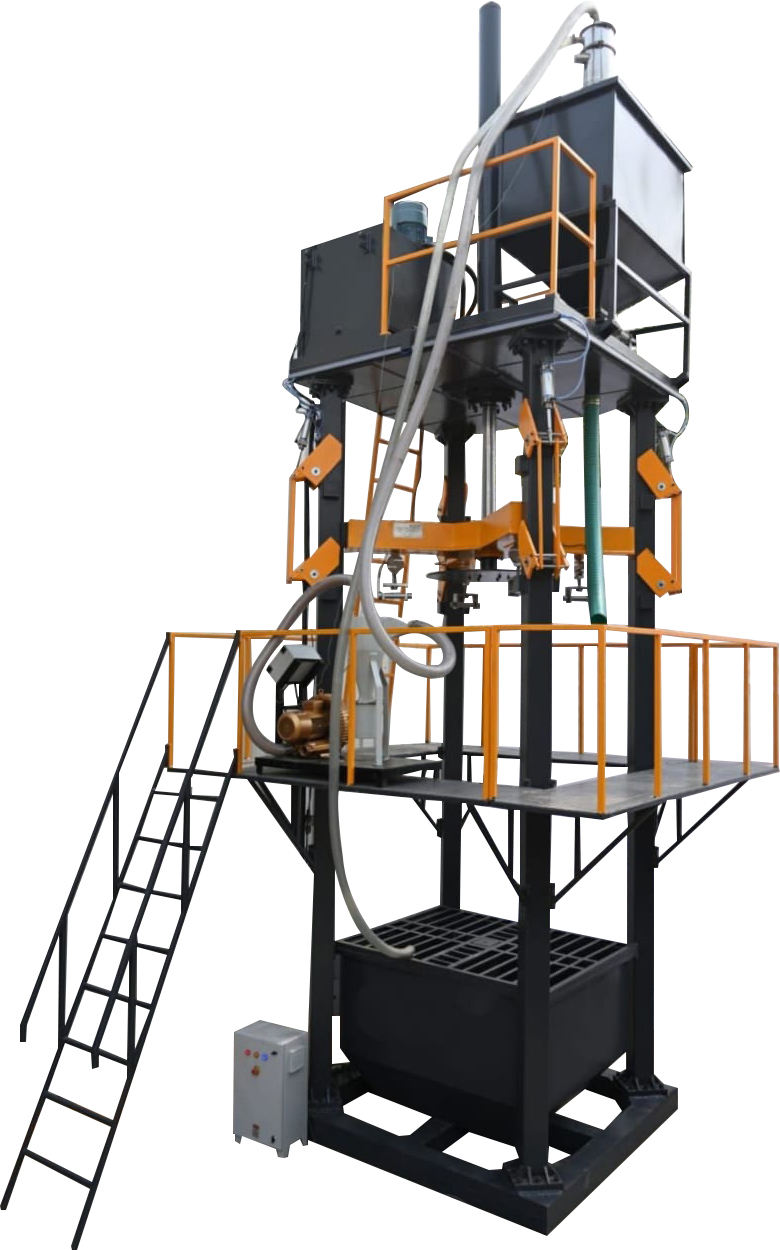

| MACHINE | FIBC BAG TESTING MACHINE |
| Maximum Capacity | 30 MT |
| Hydraulic Cylinders | 150 MM BORE 2300 MM STROKE |
| Power Pack | 7.5 HP, 3 PH, 50 HZ, 1440 RPM, A/C MOTOR |
| Oil Tank Capacity | 350 -400 LTR |
| Operating pressure | MAX 170 BAR |
| Type | 4 PILLAR UP AND DOWN STROKE |
| Height | 820 CMS |
| Length | 170 CMS |
| Width | 170 CMS |
| Day Light Gap | 350 CMS |
| Load Cell | 4 NOS 7 TONNE CAPACITY IP -65 PROTECTION |
| Number of Hooks | 4 LOOPS AND ATTACHMENT FOR ONE LOOP AND TWO LOOPS |
| Height Adjustment | HYDRAULIC |
| Granules Filling | AUTO FILLING WITH PNEUMATIC SYSTEM |
| Total Power Required | 15 HP 3 PH 440V WITH ZERO EARTHINGTest |
| Report | AUTO GENERATED, WITH PRINT OUT |
| Machine Control | COMPUTER CONTROL WITH PLC PROGRAM |
| Electrical Panel Board | FULLY AUTOMATIC |
| Web Camera | 1 NOS PHOTO CAPTURES AUTOMATICALLY (BEFOR AND AFTER TEST ) |
